Description

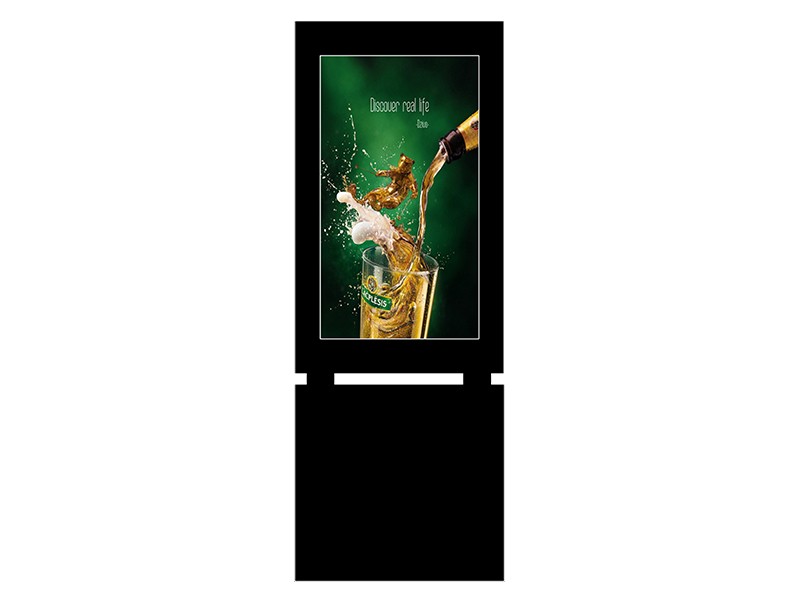

Environmental Protector Digital Signage
Digital Signage with Trash Storage
The combination of digital signage and trash cans can reduce the construction of facilities in tourist areas or squares
When people play in the square or on the beach, they can easily find trash cans, which reduces people's behavior of littering and protects the environment.
1、Outdoor digital sign with trash can：
Use high brightness LCD, brightness from 1000 ~ 2500cd / M
Clear display in sunlight, visibility 178 ° horizontally / vertically
Can be added: support remote monitoring, touch interaction, WiFi / 3G / 4G
Waterproof grade IP55
The shell is made of galvanized steel sheet, coated with zinc powder and sprayed with special powder
More than 7 years of anti-corrosion of shell
2、Product parameters：
| Model | Windows version | Android version | |
| Screen | Panel Brand | Samsung/LG/BOE Full New 100% A(optional) | |
| Panel size | 55″ （19” ~86”） | ||
| Display size | 1084mm(V)×615mm(H) | ||
| Display ratio | 16:09 | ||
| Resolution | 1920*1080 | ||
| Viewing angle | 178°/178°(H/V) | ||
| Color | 16.7M | ||
| Back light | LED | ||
| Brightness | 2500 cd/m2 | ||
| Contrast ratio | 3000:01:00 | ||
| OS System | main board:i5-3317U(optional) | CPU:RK3288(optional) | |
| RAM:4G (optional) | RAM:2G | ||
| ,SSD:128G(optional) | EMMC:8G(optional) | ||
| Operation | Win7(optional,win8,win8.1,win10) | Android 6.1(optional,Android6.1/7.1.2/8.2/9.0) | |
| Connection to network | RJ45, WIFI (4G,optional) | RJ45, WIFI (4G,optional) | |
|
Touch Screen system |
Touch ways | finger,touch pen | finger,touch pen |
| Touch dots | 10dots (optional,20dots,40dots) | 10dots (optional,20dots,40dots) | |
| Durability | More than 50 million touch | More than 50 million touch | |
| Power | Power | 330W | 330W |
| Voltage | AC100-240V 50/60HZ | AC100-240V 50/60HZ | |
| Stability | good | good | |
| Instructions | Interface | VGA/HDMI/USB | HDMI/USB/SD |
| Working | -30°C — 60°C(with air condition） | -30°C — 60°C(with air condition） | |
| temperature | -10°C — 55°C(with air follow exchange） | -10°C — 55°C(with air follow exchange） | |
| -30°C — 55°C(with air follow exchange+heater) | -30°C — 55°C(with air follow exchange+heater) | ||
| Material | Aluminum alloy,tempered glass | Aluminum alloy,tempered glass | |
| Surface | Spraying,frosted aluminum | Spraying,frosted aluminum | |
| Size | Undetermined | Undetermined | |
| Weight | Undetermined | Undetermined | |
| Body | Shell | Galvanized steel sheet. Thickness:2mm. | |
| Color | Black , white , silver or customized colors | ||
| Packing | By carton, wooden case, flight case （optional） | ||
| Optional Functions | Anti-dazzle、Anti-graffiti、Anti-glare,Anti-refection、 | ||
| Anti-UV、Anti-IR、Water-proof、dust-proof、vandal proof | |||
| 3G/4G Capability | |||
| Human sensor、Light sensor、Screen sensor、Humidity sensor、Temperature sensor、 | |||
| Vibration sensor、Safty monitoring sensor、Ponding sensor、Smog sensor、Collision sensor、Tilt sensor | |||
